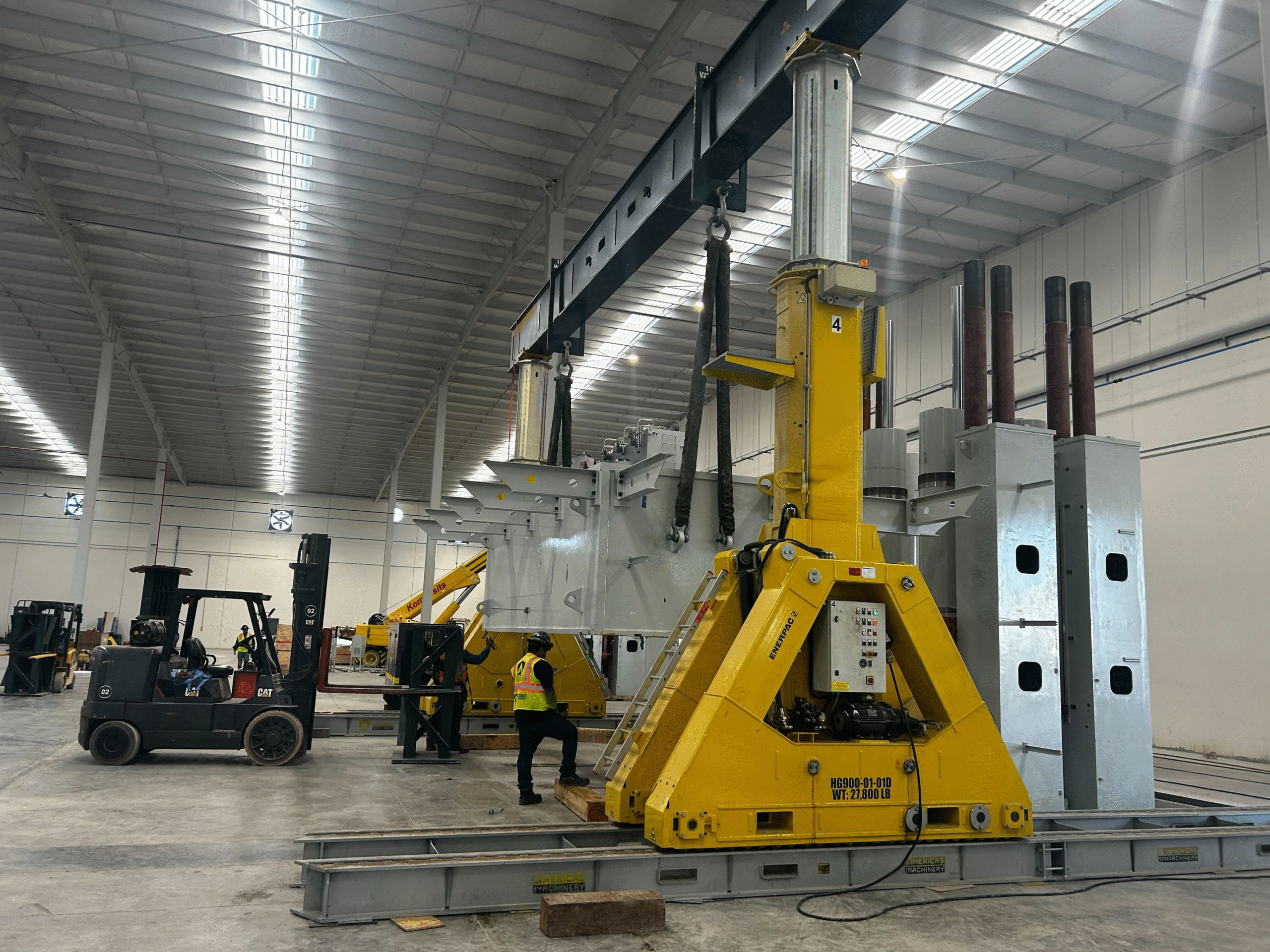

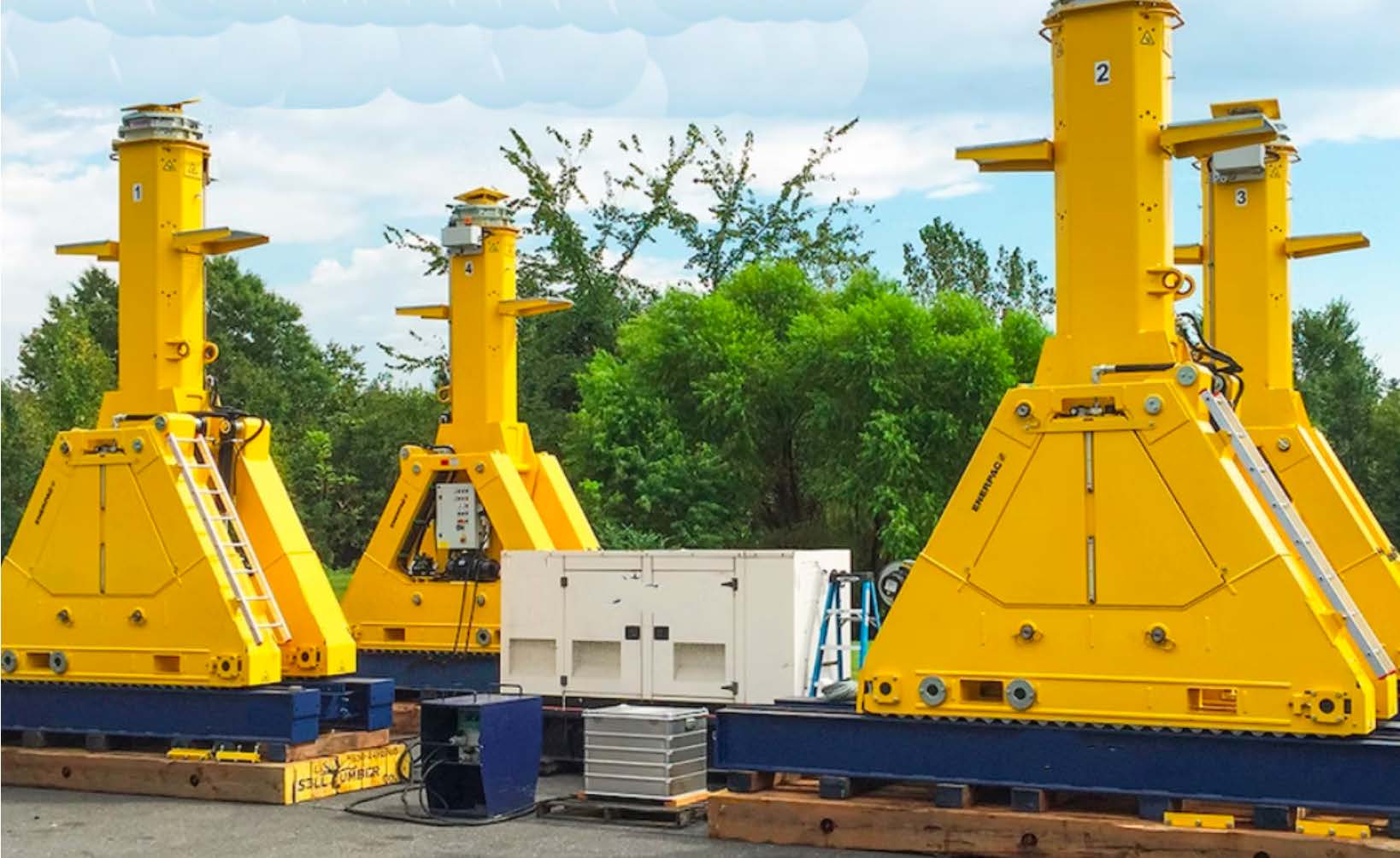

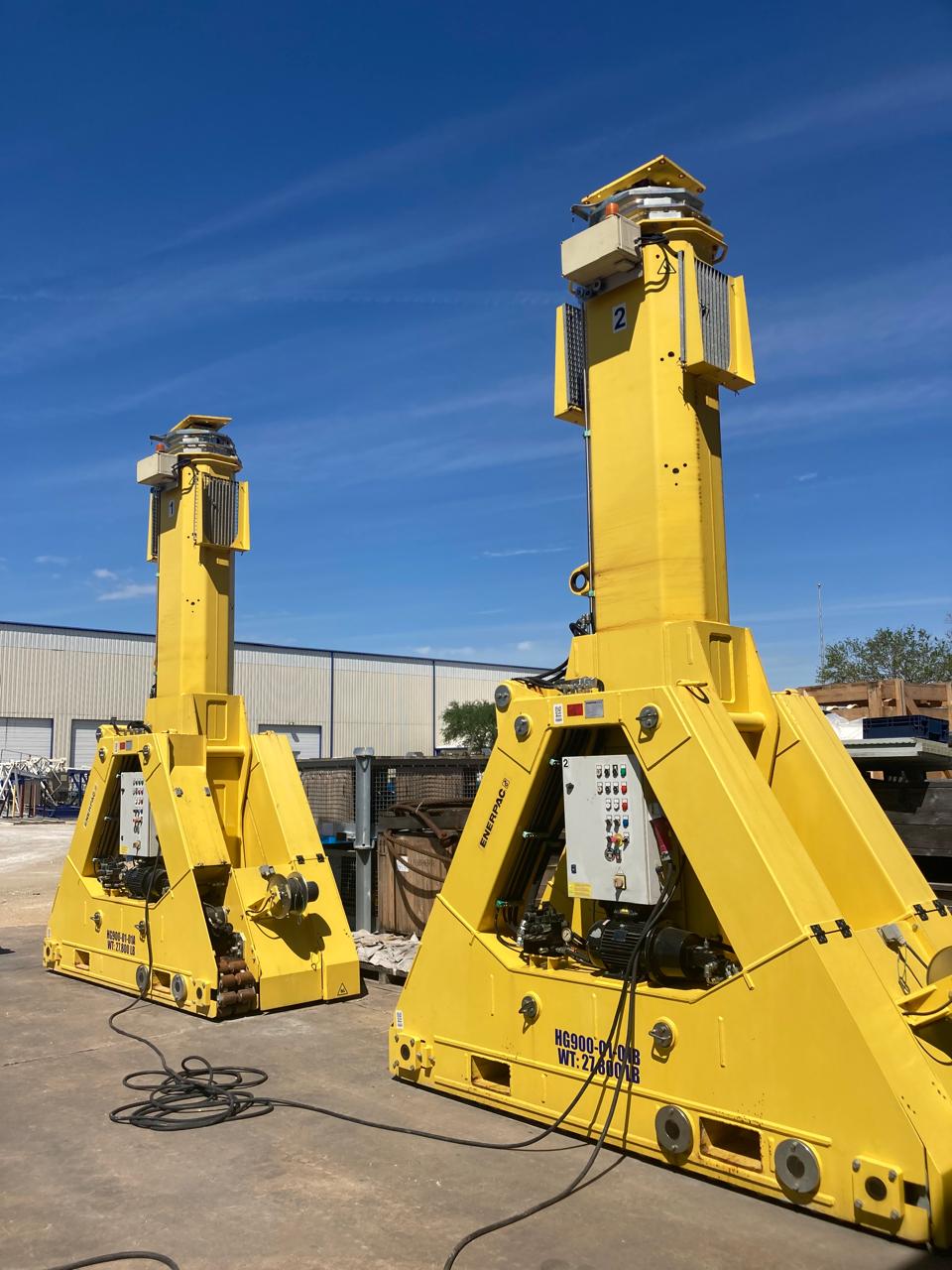

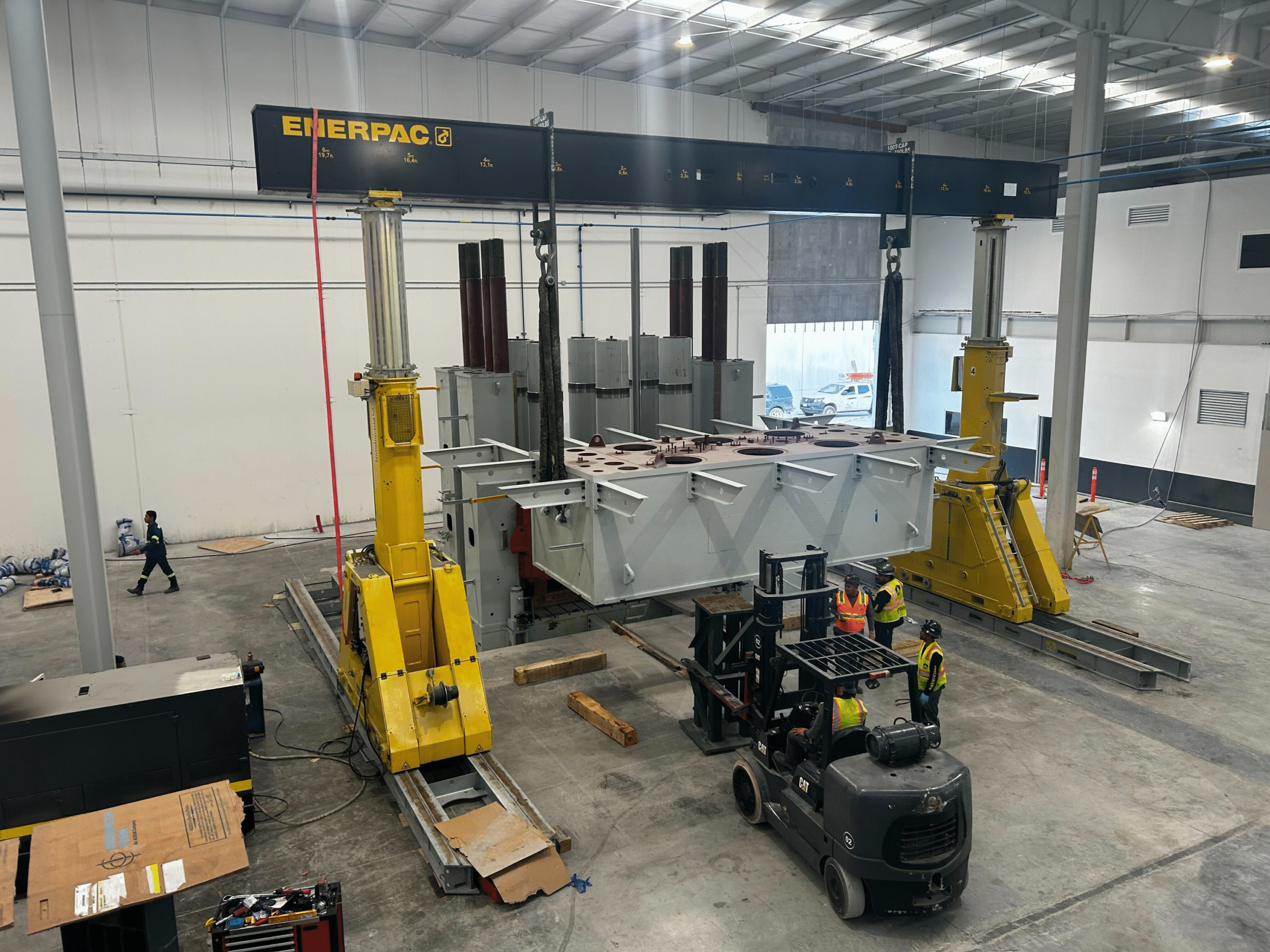

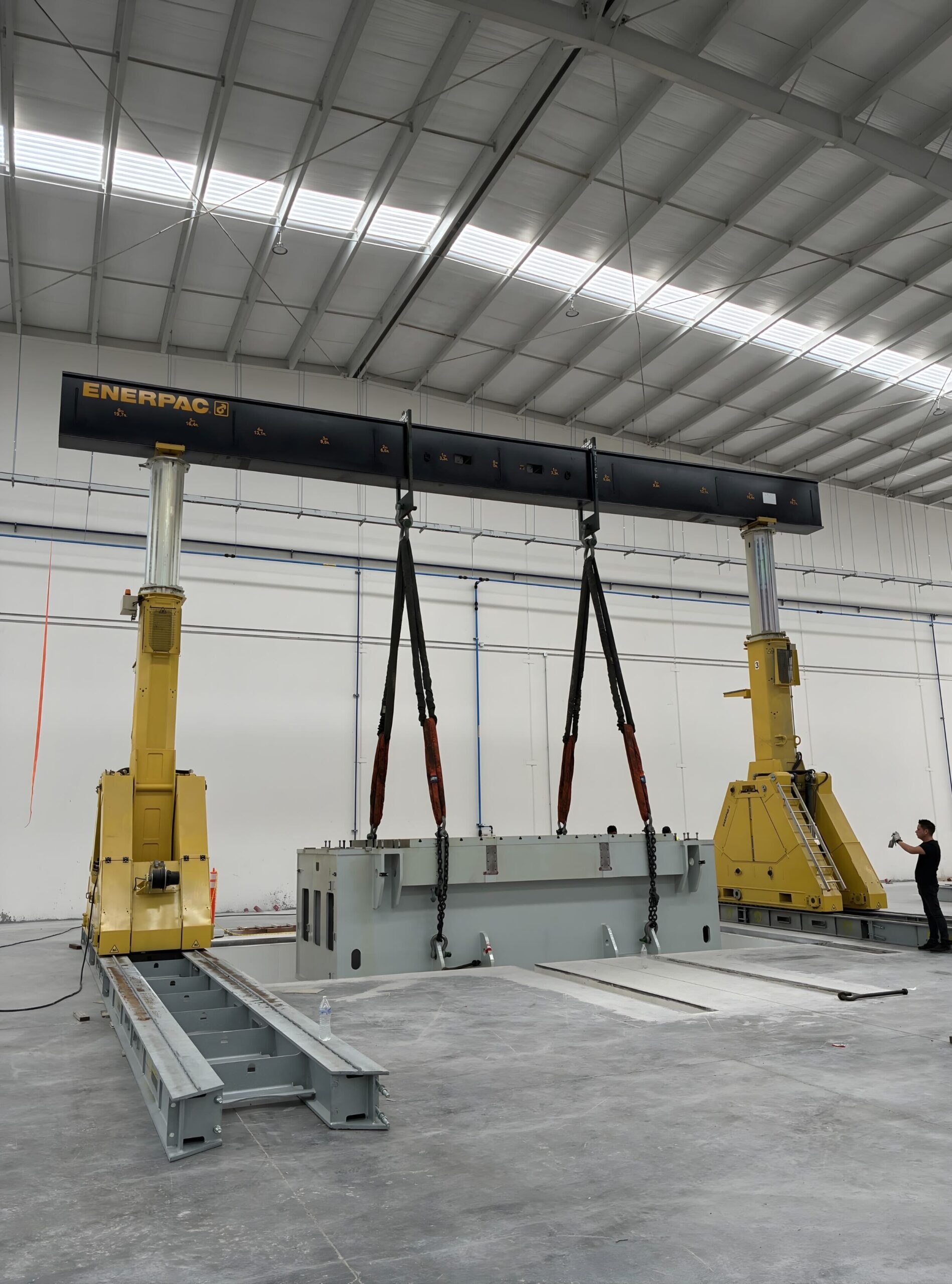

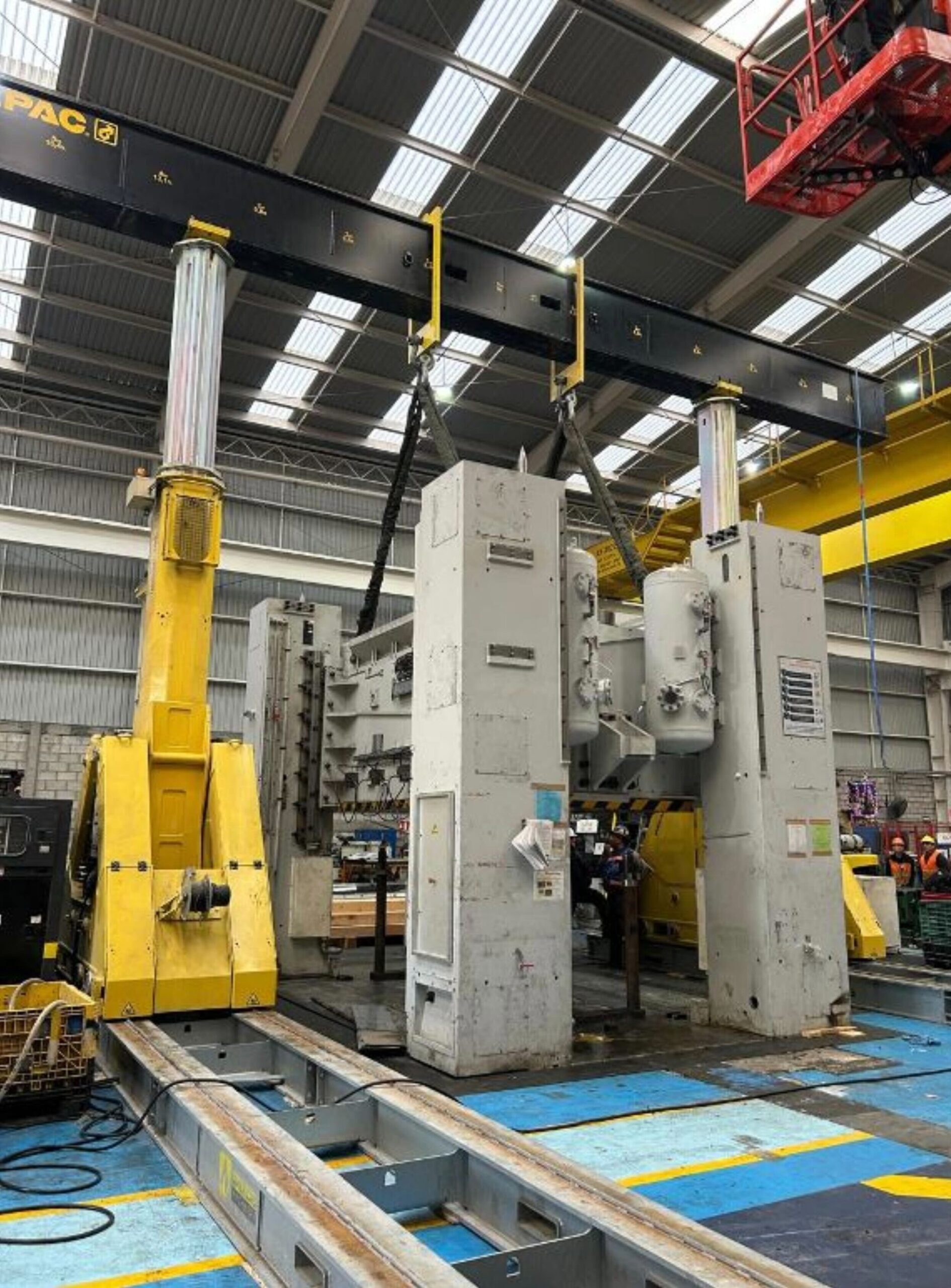

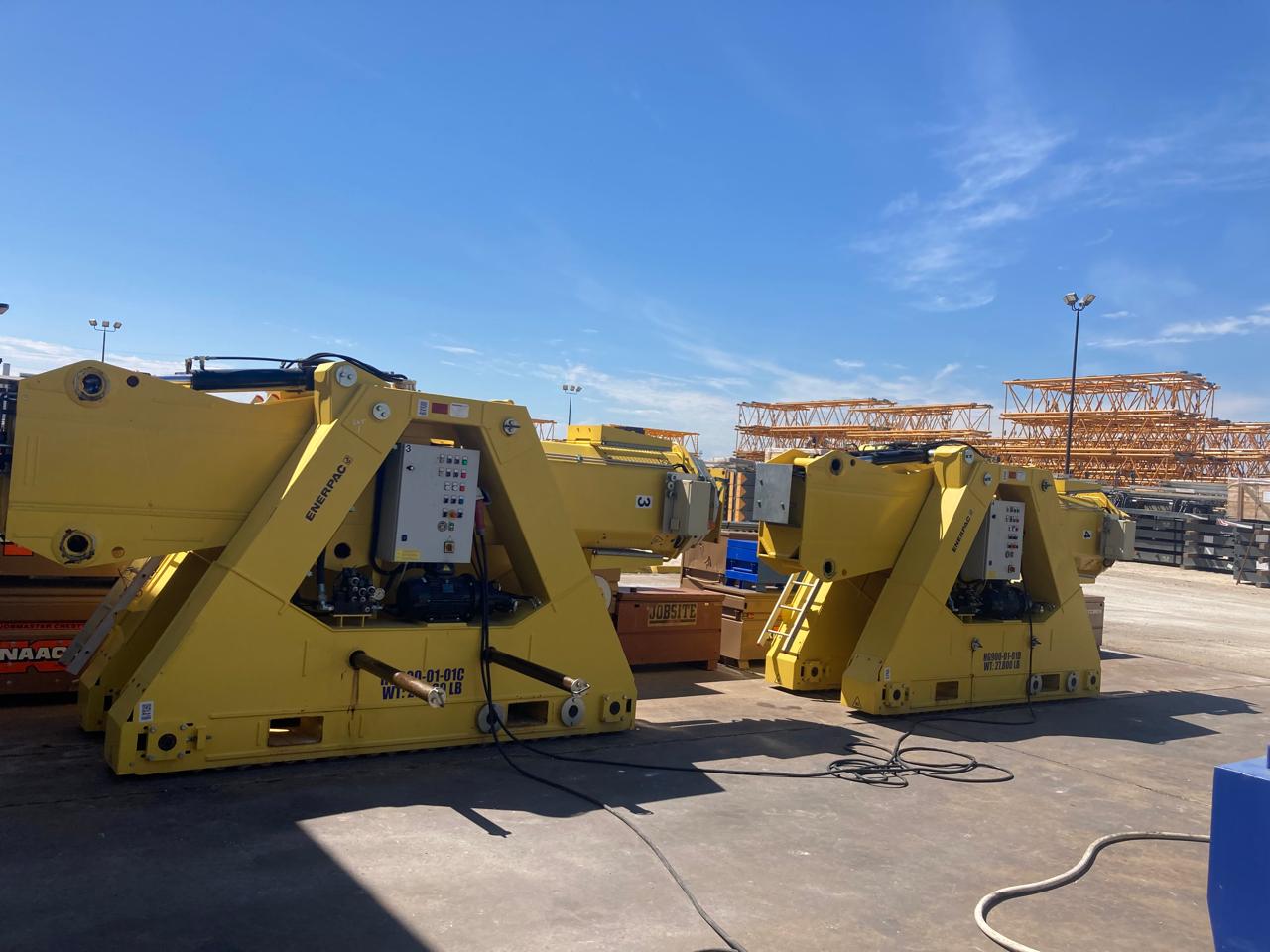

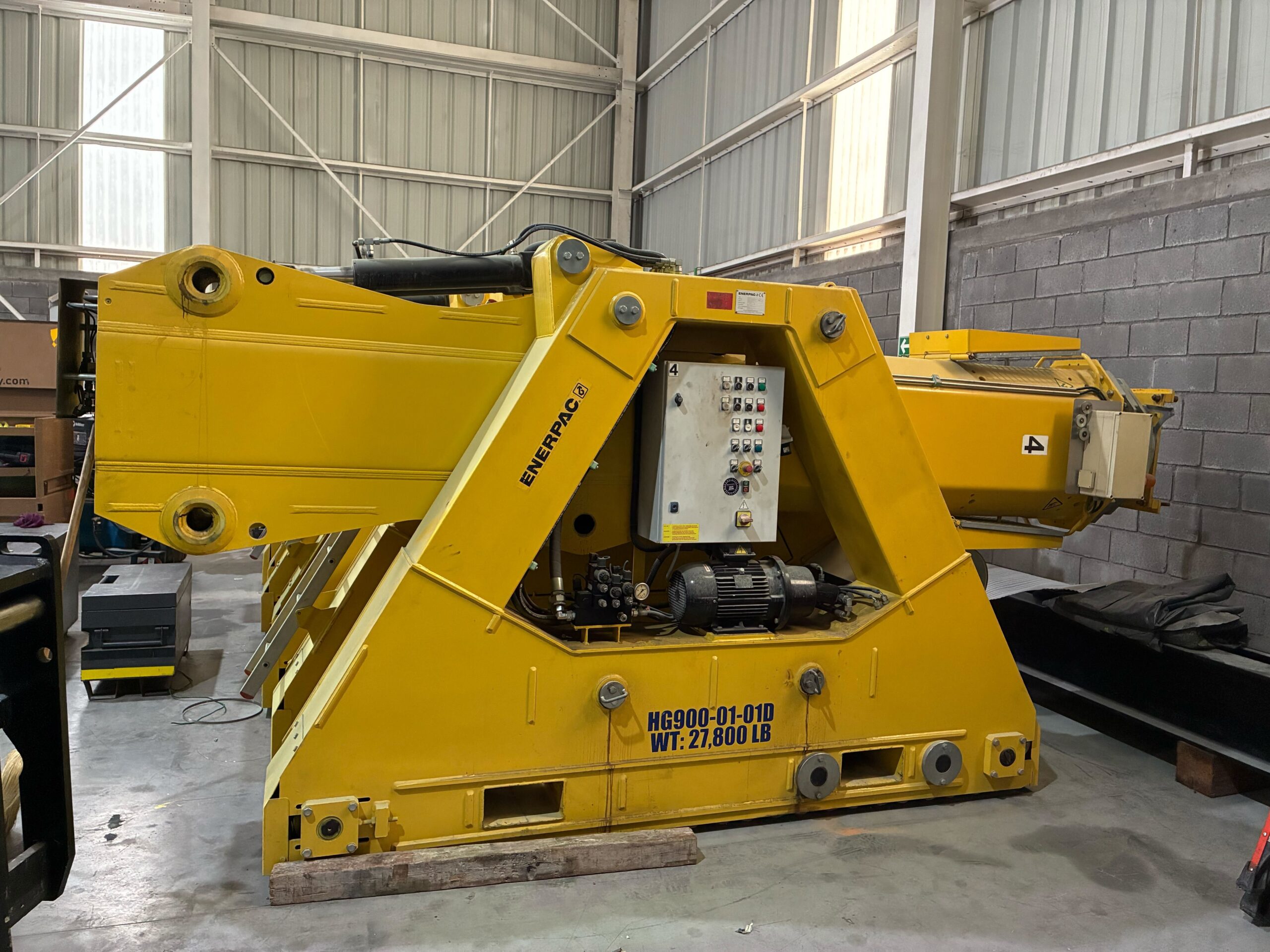

2016 Enerpac SBL900 Gantry System for Sale
900 metric ton capacity, 4 hydraulic legs with synchronized 2-stage lifting, self-propelled travel, remote control, power and data cables included. Sold with accessories: skid tracks, HBB-14 SP header beams, and D-links.
This system is in excellent condition and is available now!
Year: 2016
Make: Enerpac
Model: SBL900 Gantry System
Capacity: 900 metric ton
SWL-Stage 1 – 2,244 kN (505 kips)
SWL-Stage 2 – 1,481 kN (333 kips)
Self Weight – 13,350 kg (29,432 lbs) per unit
Travel – Self-propelled

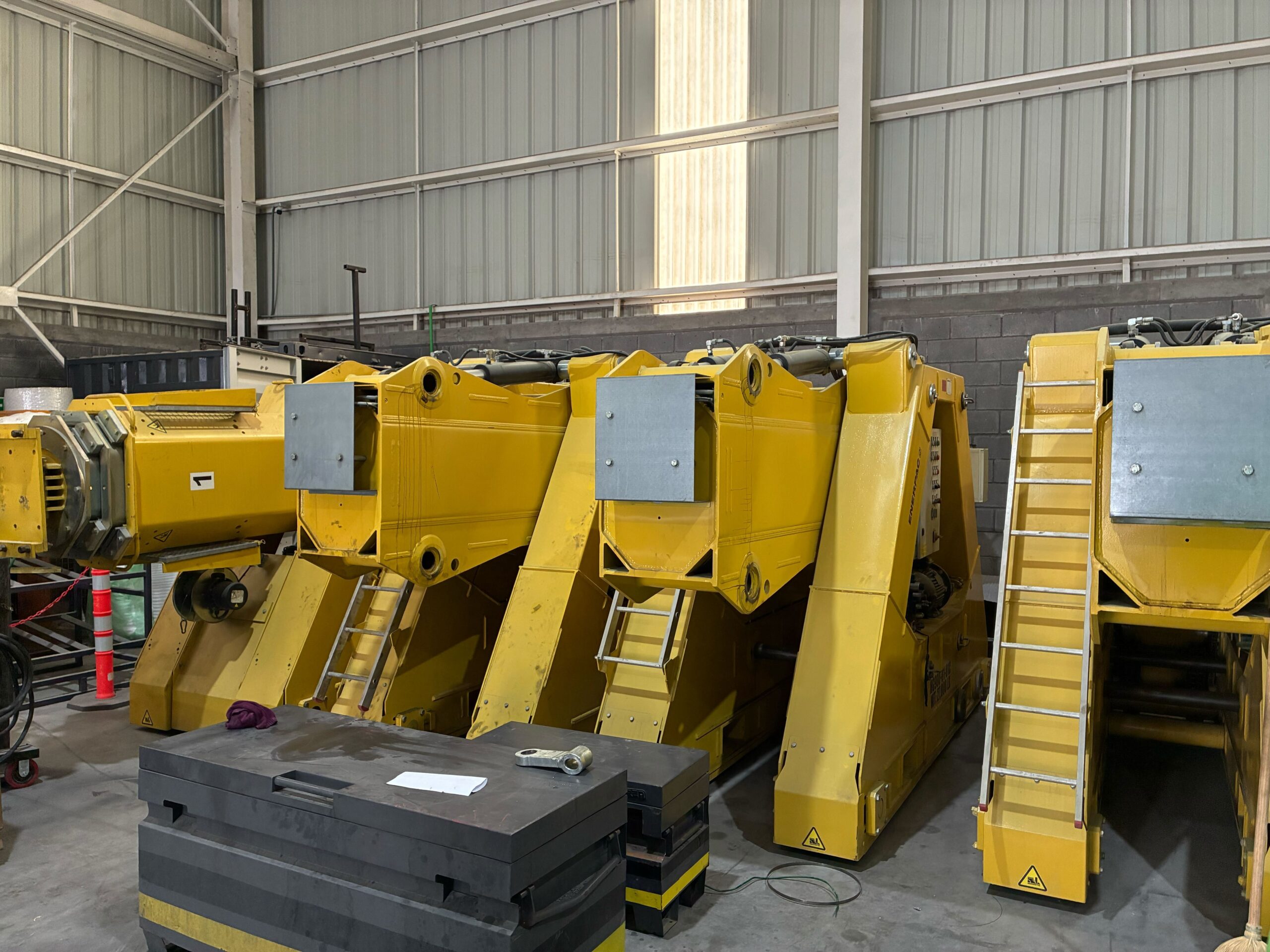

Legs – 4 x hydraulic
Control – Remote Control

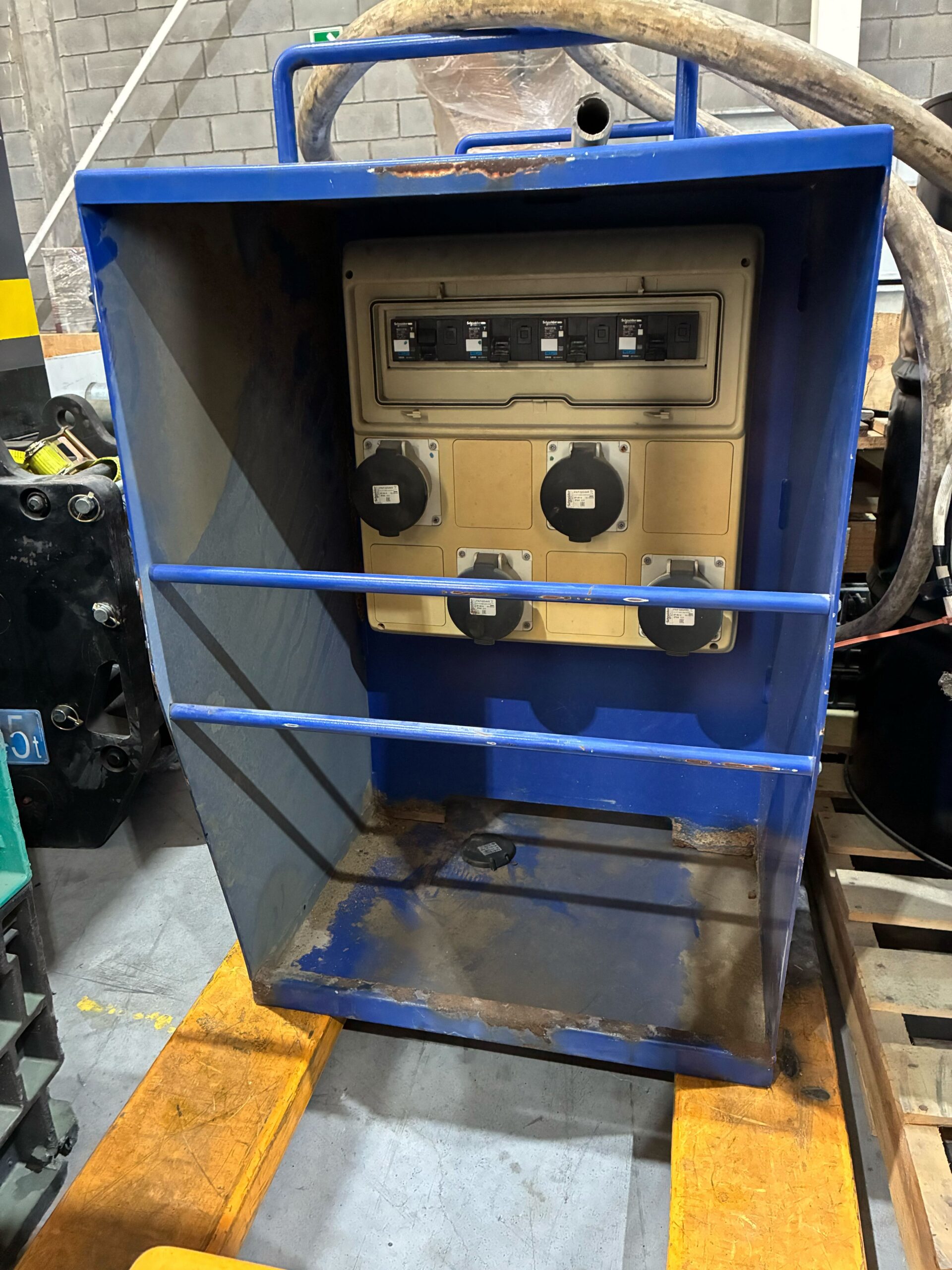

Included – Power and Data cables
Condition – Excellent Operating Condition
Accessories Package:

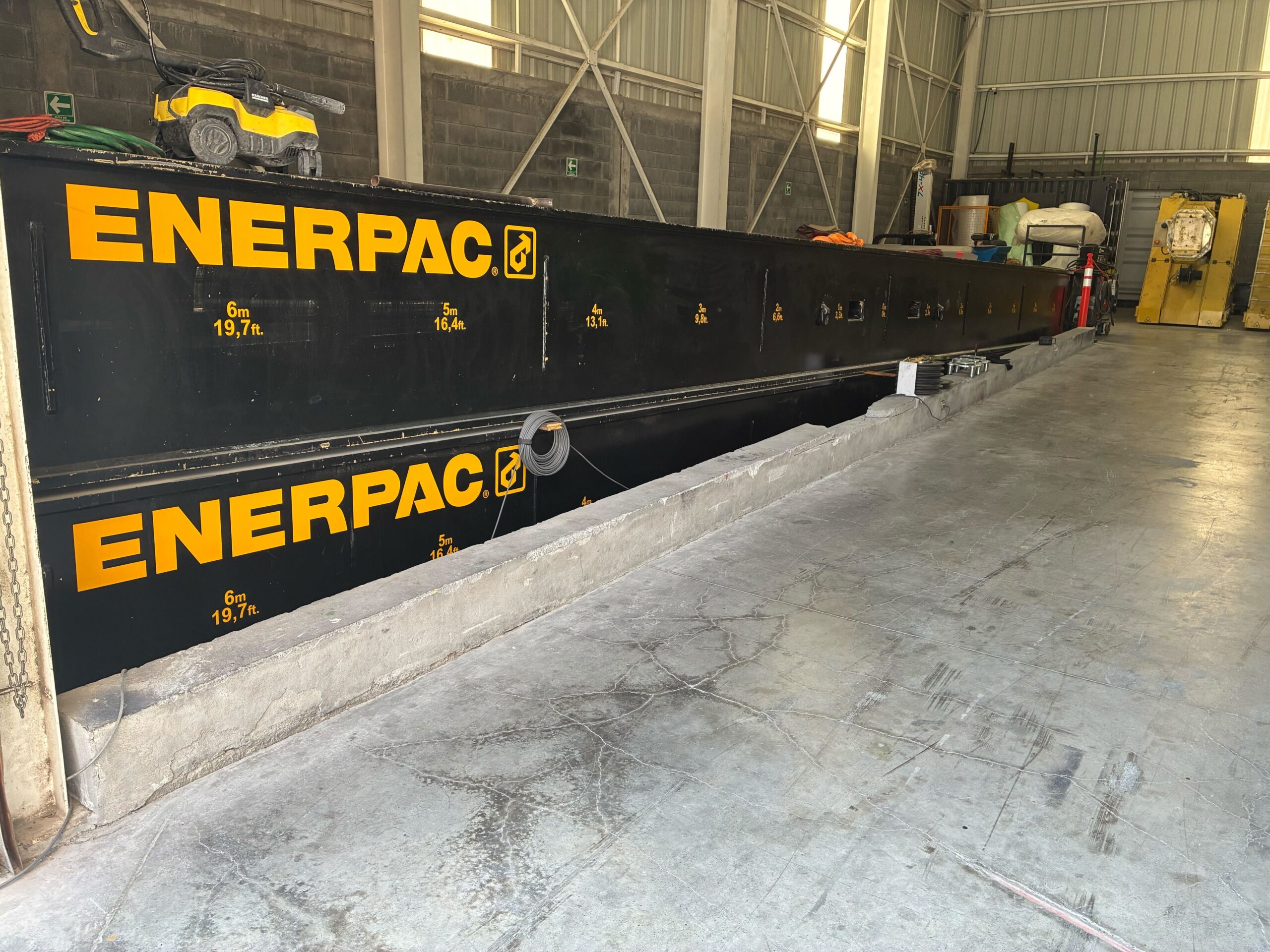

Skid Tracks GST1100 Series
(4) GST1100-6 Model 6m
(4) GST1100-3 Model 3m
Width – 3 ft
Compatability – SL400, SBL500, SBL900, SBL1100

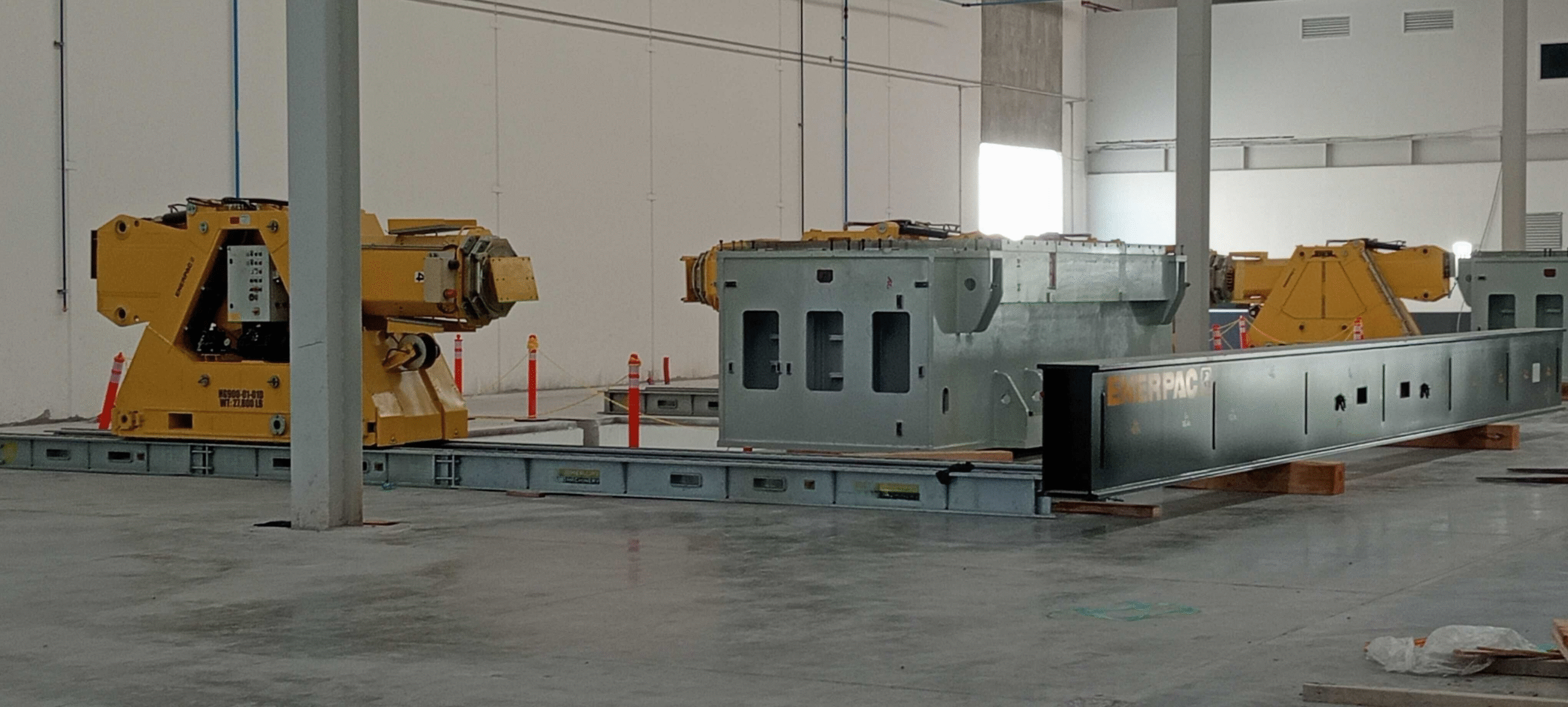

Header Beams – HBB-14 SP
Set of 2 beams
WLL (max. in centre) – 970kN/pc (218 kips)
Self Weight. – 7,695 kg/pc (16,694 lbs)
Length – 13,384 mm (526 15/16″)
Capacity off centre – per manufacturer’s load chart

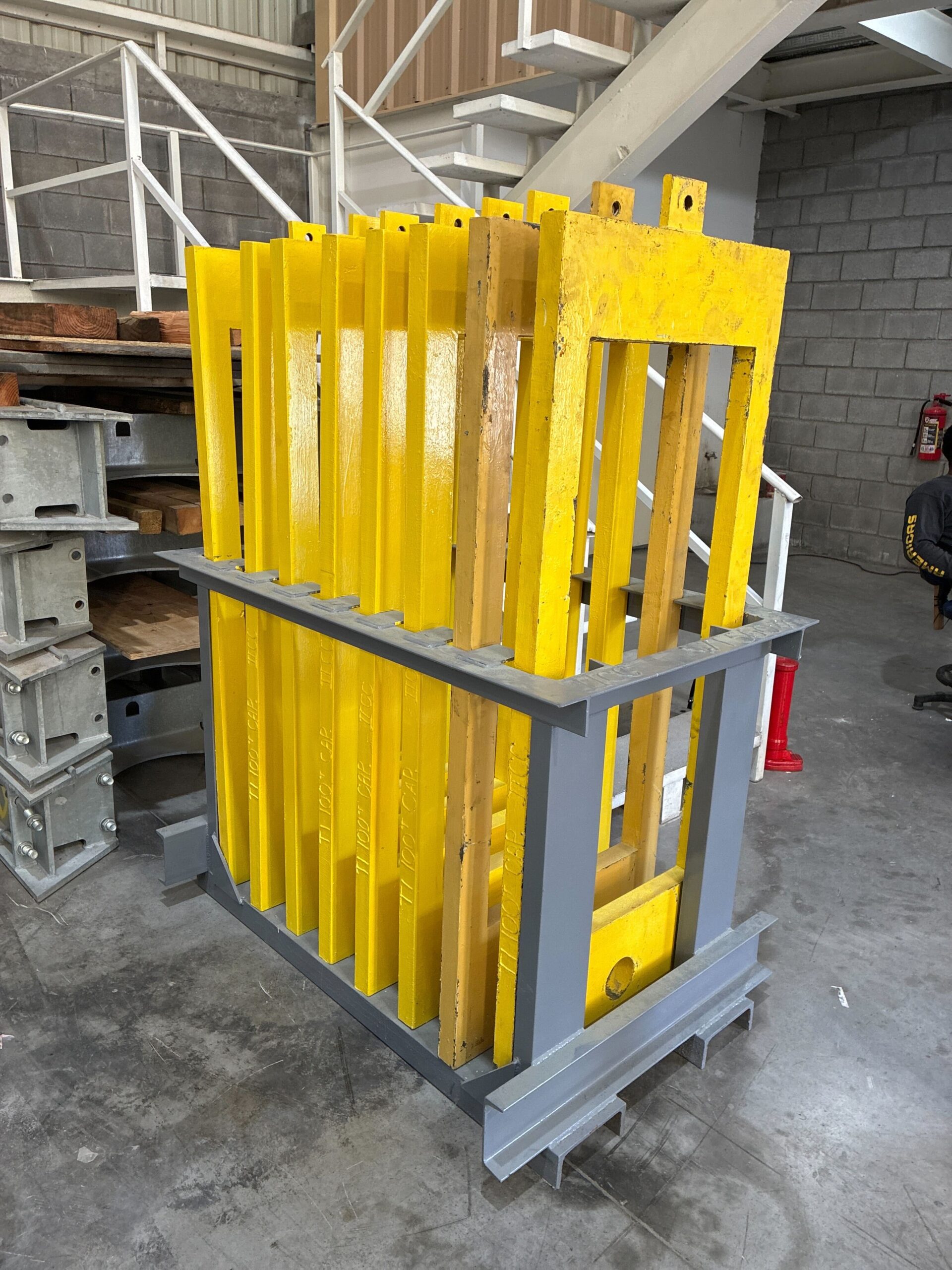

D-Links
