Enerpac Low Height Skidding System

Our Low Height Skidding System is a modular system that can jack and slide heavy loads over a pre-constructed track. The Low-Height Skidding System is comprised of a series of skid beams moved by hydraulic push-pull units, travelling over a pre-constructed track. A series of special PTFE-coated pads are placed on the skid tracks to reduce friction. The push-pull units are powered by a standard Enerpac Split Flow Pump (ordered separately) to ensure each skid beam travels synchronously.

The LH400SK Low Height Skidding Set comes with two skidding units that will support up to 400 tons in total. After the job is complete, components can be stowed on the included storage and transport frame. SFP Series pumps (ordered separately) are the best choice to safely and efficiently operate the LH series skidding system.

This set includes:

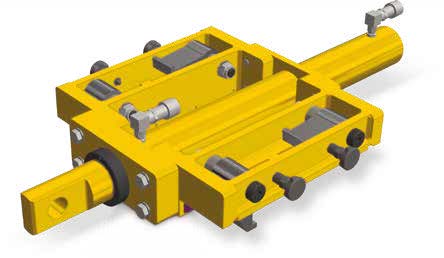

• 2 push-pull units
• 4 skid beams
• 10 skid tracks
• 1 storage and transport frame

Features & Benefits include:

• 2-in-1 track design for added support
• Intuitive pump control via SFP pump (ordered separately)
• Easily reversible to change skidding direction
• Portable design for quick setup
