SFP Series Split Flow Hydraulic Pumps

The SFP-Series electrically driven Split Flow Hydraulic Pumps are Enerpac’s new solution for multi-point lifting and lowering applications where uneven loads need to be positioned equally. They are a far better alternative to using separately operated pumps or manifolds with needle valves. Split Flow Pumps are a safe and economical solution which can achieve lifting accuracy of 4% across lifting points.

The Split Flow Pump has manual valves with joysticks or solenoid valves with a pendant to enable controlled movement of the load. The load can be lifted/lowered simultaneously using single or double-acting cylinders. Depending on the application, the lifting points can be operated individually or simultaneously.

Applications

The Split Flow Pumps can be used in a wide variety of lifting, lowering and pushing applications, such as : bridge deck lifting for bearing maintenance, machinery lifting and moving, skidding to move structures and buildings, and shipbuilding applications.

Features

• 2, 4, 6 or 8 split-flow outlets with equal oil flow
• 7 different flows from 20 – 305 in³/min at 10,000 psi
• Advance, hold and retract function
• Suitable for single and double acting cylinders
• Individual or simultaneous valve operation
• Rigid protection frame with forklift pockets and lifting eyes
• All models include pressure gauges and adjustable relief valves per outlet

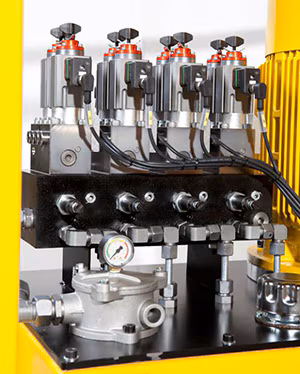

• Solenoid valves and pressure relief valves and 4 circuit manifold
• Pendant for solenoid controlled valves
