Description

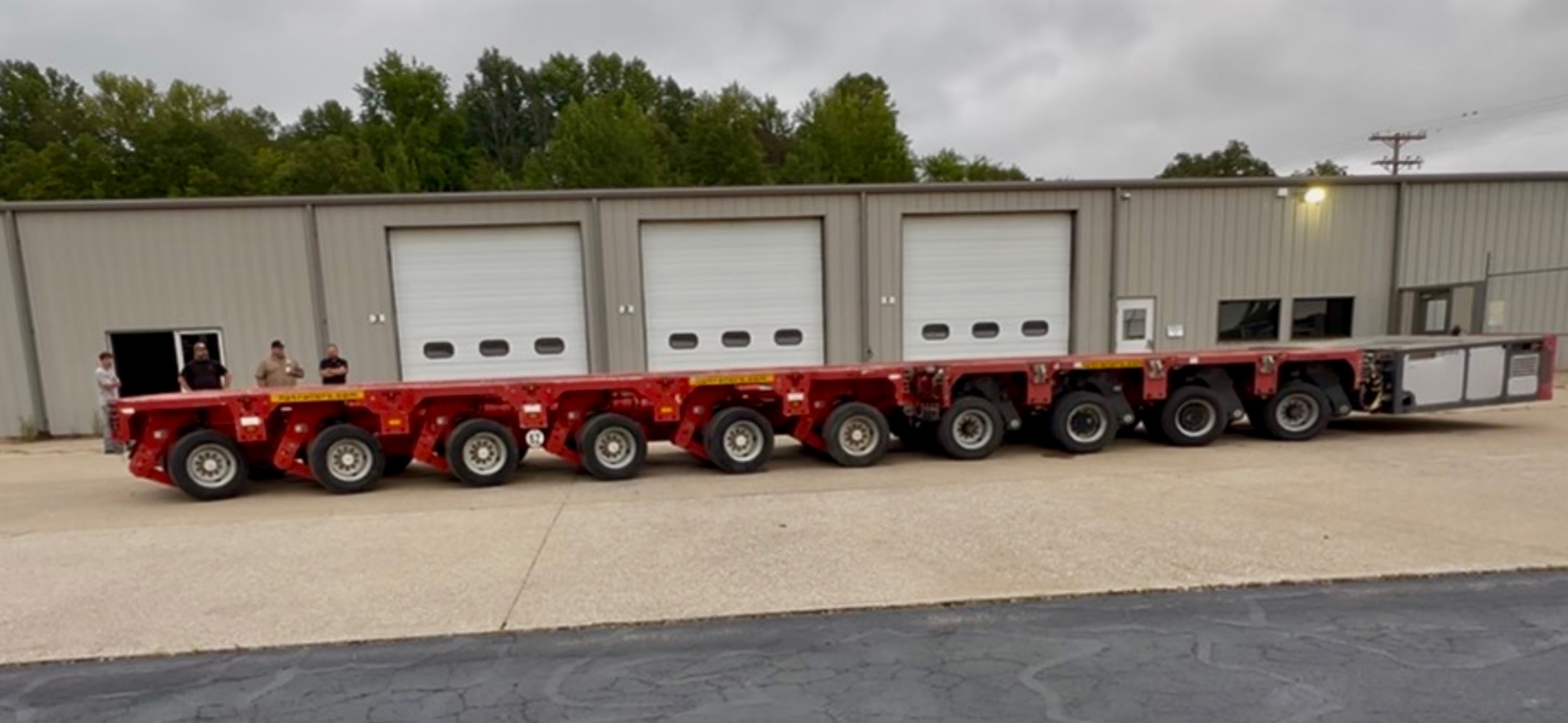

2014 FAYMONVILLE SPMC G-MODULE-SL TRAILERS 4 AXLE W/PPU
2011 K25 SCHEUERLE 6 AXLE
FOR SALE OR RENT
2011 Scheuerle K25 6-axle
Vehicle Width: 3,000 mm
- Axle Distance (Spacing): 1,500 mm
- Axle Load Capacity: Up to 45 tonnes per axle line (depending on configuration and speed; towed variants typically rated around 36 to 45 t static/low-speed)
- Hydraulic Stroke (Suspension Travel): 300 mm to 680 mm total compensation depending on sub-model
- Steering Angle: +/- 60° (standard hydraulic/mechanical) or up to +/- 140° on specialized self-propelled electronic versions
- Configuration: 6-axle modular unit that can be coupled end-to-end and side-by-side
2014 Faymonville SPMC 4-axle
Weights & Load Capacities (Per 4-Axle Bogie)
- Technical Axle Load: 36,000 kg to 45,000 kg per axle line (depending on configuration, e.g., G-ST vs. G-SL modules).
- Tare Weight: Approximately 13,400 kg to 14,000 kg.
- Max Point Load (Wheel Arches): Up to 50,000 kg.
- Max Point Load (Cross Members): Up to 80,000 kg.
Dimensions & Chassis
- Width: 3,000 mm (approx. 9′ 10″).
- Axle Distance / Spacing: 1,500 mm.
- Driving Height: 1,120 mm to 1,190 mm (depending on exact module type).
- Axle Compensation / Stroke: Highly flexible hydraulic compensation of -300 / +300 mm up to a maximum suspension stroke of 650 mm.
Steering & Tires
- Steering Type: Conventional hydraulic steering.
- Steering Angle: -60° to +60°
- Wheel Sets: Mounted on pivot bearings with fully adjustable conical roller bearings.
- Tires: 8 x 215/75 R17.5 per axle line
Powerpack Unit (PPU 240 SPMC)
To drive the self-propelled axles, these units are paired with a dedicated PowerPack Engine
- Engine: Mercedes-Benz OM 926LA Blue-Tec (6-cylinder in-line, Turbo-Intercooler).
- Power Output: 240 kW (326 PS) @ 2,200 rpm.
- Torque: 1,300 Nm @ 1,200 rpm.
- Hydraulic Pump System: Bosch-Rexroth A4VG.
- Capacity: Manages up to 36 axle lines with a 300-liter operating hydraulic tank
